OpenAPI Extensions

The following extensions are available on DeveloperHub.

x-tagGroups

x-tagGroups groups operations in the index, creating one further hierarchy. This feature is only enabled if the index is set to be collapsible.

Tag groups can be defined as such in OpenAPI:

xxxxxxxxxx

openapi: '3.0'

info: ...

tags:

  - name: Lion

  - name: Cheetah

  - name: Dolphin

  - name: Octopus

x-tagGroups:

  - name: Feline

    tags:

      - Lion

      - Cheetah

  - name: Sea

    tags:

      - Dolphin

      - Octopus

x-enum-varnames

x-enum-varnames gives a secondary name for an enum.

Enum var names can be defined as such in OpenAPI:

xxxxxxxxxx

Animal:

  type: integer

  enum:

    - 33

    - 21

  x-enum-varnames:

    - Dog

    - Cat

Variables

In addition to using variables throughout the API references, those variables can also be used:

• %_.project.base_path% for project base path.
• %_.version.slug% for version slug.
• %_.section.slug% for API reference slug.

Those variables are specifically useful to construct links inside markdown descriptions.

x-labels

x-labels adds one or more labels to a schema property's description.

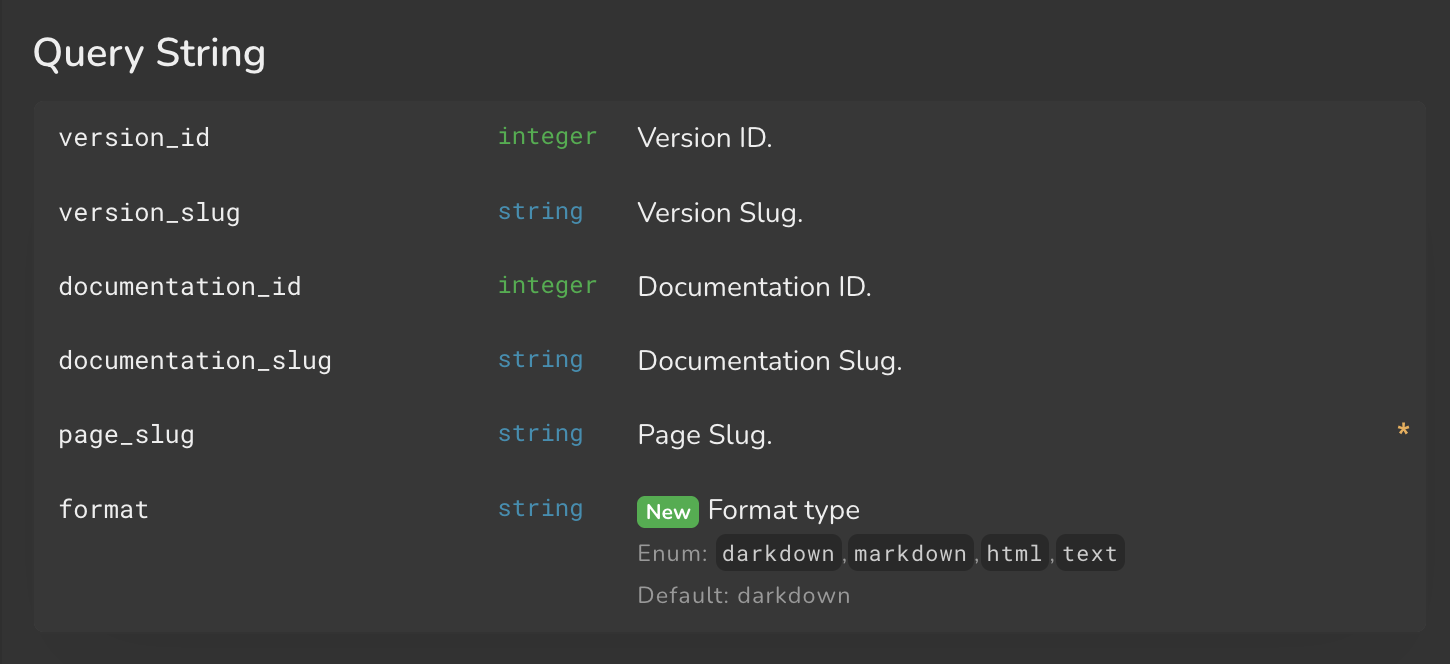

Example showing "New" badge on format

Labels can be defined as such in OpenAPI:

xxxxxxxxxx

/page:

    get:

      parameters:

        - name: page_slug

          description: Page Slug.

          schema:

            type: string

          in: query

          required: true

        - name: format

          description: Format type

          schema:

            x-labels:

              - text: New

                type: "badge badge-success mr-1"

            default: darkdown

            enum:

              - darkdown

              - markdown

              - html

              - text

            type: string

          in: query

          required: false

When x-labels is set, each label is placed in the description, unstyled, using the text provided. Each label is given the CSS classes label and the value of type. This can be used to add specific labels with specific colours, like badges on a description.
